June 12, 2025 Sustainability in Machining: A Practical Approach
Sustainability is a major focus across industries, and machining is no exception. Manufacturers and machine shops are finding innovative ways to reduce waste, improve energy efficiency, and adopt environmentally friendly practices—all while maintaining high-quality production. For machine shops like Adept, sustainability isn’t just a trend; it’s an opportunity to improve operations and reduce costs.
Minimizing material waste
One of the most effective ways to promote sustainability is by reducing material waste. Here at Adept, we recycle all scrap material, leaving little to no waste! Other strategies include:
Precision Machining: Investing in high-accuracy cutting tools and techniques minimizes excess material removal.
Smart Nesting & Optimization: Planning cuts to maximize material usage reduces leftover scrap.
Repurposing & Reusing: Some excess material can be reshaped for new projects instead of being discarded.
Adept’s Recycling Process
At our Milwaukee-based shop, every piece of scrap material is put to good use. Instead of discarding metal chips and offcuts, they are carefully collected and sorted by material type. The separated metals are then sent to local recycling facilities, where they are processed and repurposed for future use in manufacturing. The photos below are just some of the barrels in which we collect the scrap. This approach not only reduces waste but also promotes circular manufacturing, ensuring that valuable resources are continually reused rather than lost.
Optimizing Energy Use
Energy efficiency in machining is often overlooked but has a significant environmental impact. Shops can improve energy usage by:
Upgrading Equipment: Newer machines often have lower power consumption and better automation features.
Utilizing Variable Speed Drives: Controlling motor speeds can reduce unnecessary energy usage.
Efficient Coolant Systems: Using advanced coolant recycling methods reduces waste and energy demands.
Here at Adept, we use all of these techniques and more to reduce energy use, which not only increases sustainability, it reduces cost.
Adopting Eco-Friendly Practices
Beyond waste and energy optimization, there are several steps shops can take to be more environmentally conscious:
LED Lighting & Smart Climate Control: Optimizing lighting and temperature settings lowers energy consumption.
Carbon Footprint Tracking: Monitoring emissions helps identify areas for improvement and sustainability goals.
Sustainability in machining is more than just a responsibility—it’s a smart business move. By recycling scrap material, optimizing processes, and investing in eco-conscious solutions, machine shops can reduce costs while contributing to a greener future. Small changes, when implemented consistently, make a big difference.
June 10, 2025 The Role of 4-Axis Machining: Precision, Efficiency, & Innovation
The Role of 4-Axis Machining: Precision, Efficiency, and Innovation
In the world of modern manufacturing, 4-axis machining has revolutionized the way complex parts are created. Unlike conventional 3-axis machining, which moves a tool along the X, Y, and Z axes, 4-axis machining introduces an additional rotational axis—typically the A axis—more intricate machining operations with improved accuracy and efficiency.
Advantages of 4-Axis Machining
Expanding from the limitations of 3-axis machining, the addition of a rotating axis opens up new possibilities, including: Rotational Machining Capabilities: Unlike 3-axis machines, which require manual repositioning for multiple operations, 4-axis machining allows the workpiece to rotate continuously, enabling detailed cuts on different sides without additional setups. Enhanced Efficiency: Reducing the need for repositioning leads to faster machining cycles, saving both time and labor costs. Improved Precision and Consistency: The continuous rotation provides more uniformity, especially for components requiring symmetrical features, such as gears and camshafts. Better Surface Finishing: The ability to rotate the workpiece mid-operation allows for smoother and more refined surface finishes compared to conventional machining. Expanded Design Flexibility: Manufacturers gain greater control over complex geometries, making 4-axis machining ideal for intricate parts without the complexity of a full 5-axis setup. Applications Across Industries Industries requiring high-precision machining benefit immensely from 4-axis technology.
Aerospace: Machining parts like turbine housings, airfoil structures, and brackets that require rotational accuracy. Automotive: Manufacturing engine components, crankshafts, and suspension parts with tight tolerances. Medical Devices: Producing surgical tools and prosthetics with detailed symmetry and smooth finishes. Industrial Equipment: Machining molds, fixtures, and custom mechanical components for manufacturing processes.
The Future of 4-Axis Machining As technology advances, 4-axis machining continues to evolve with smarter CNC programming, improved automation, and hybrid techniques integrating additive manufacturing. This evolution ensures greater efficiency while maintaining the precision needed for modern industries. For manufacturers seeking a cost-effective way to improve machining capabilities without fully transitioning to 5-axis systems, 4-axis machining remains a valuable and versatile option.
At Adept, all of our mills are 4-axis machines, making us able to produce your 4-axis projects. We are ready to help! Email us at sales@adept-mfg.com or go to the Contact page to start your partnership with Adept.
June 5, 2025 How Steel is Made
The Making of Steel: A Journey from Raw Material to Essential Alloy
Steel is one of the most important materials in modern society, forming the backbone of everything from skyscrapers to automobiles .Its production is a fascinating blend of science, engineering, and industrial craftsmanship. The process of making steel involves transforming raw iron ore into a strong and versatile metal through various refining techniques. Here’s a detailed look at how steel is made. 1. Raw Materials: The Foundation of Steel Steel production begins with raw materials, primarily: Iron ore: Extracted from the earth and rich in iron. Coke: A high-carbon fuel derived from coal, used to generate heat and remove impurities. Limestone: Helps eliminate unwanted elements in the iron.
These ingredients are the fundamental components required to produce molten iron, which serves as the base for steelmaking.
2. Blast Furnace: Extracting Pure Iron Iron ore is processed in a blast furnace, a towering structure lined with refractory bricks designed to withstand extreme temperatures. Here's how the transformation unfolds: The furnace is loaded with iron ore, coke, and limestone. Heated to over 1,500°C (2,732°F), the coke acts as both a fuel and a reducing agent, converting iron ore into liquid iron. Limestone helps remove impurities by forming slag, which is separated from the molten iron. The resulting pig iron—raw iron with high carbon content—is drained from the furnace for further refinement.
3. Steelmaking Process: Refining Pig Iron Pig iron is too brittle for practical applications, so it undergoes further refining in one of two primary steelmaking methods: Basic Oxygen Furnace (BOF) Method Pig iron is poured into a BOF, where pure oxygen is blasted through it at high pressure. The oxygen removes excess carbon and other impurities, producing high-quality steel. Alloying elements such as manganese, chromium, and nickel may be added to enhance specific properties. Electric Arc Furnace (EAF) Method This method melts recycled steel scrap using electric arcs, reducing the need for raw iron ore. Like BOF steelmaking, EAF refines the molten metal by adjusting its composition. EAF is commonly used for making specialized steel products. 4. Casting and Forming: Shaping the Steel Once purified, molten steel is cast into shapes for further processing: Continuous casting produces slabs, billets, or blooms, which are later rolled into sheets, bars, or other shapes. Ingot casting involves cooling the steel in molds before further shaping. 5. Rolling and Finishing: The Final Touches Steel undergoes rolling to reach the desired thickness and texture. The finishing process includes: Hot rolling: Heated steel is shaped into sheets, beams, or rods. Cold rolling: Improves surface finish and strength by rolling steel at room temperature. Heat treatment: Annealing, tempering, or quenching enhance hardness and durability.
Conclusion: Steel's Essential Role Steel production is a remarkable blend of chemistry and industrial engineering that transforms iron ore into one of the world's most vital materials. The combination of modern technology and centuries-old metallurgical techniques ensures steel remains an indispensable part of construction, transportation, and countless other industries.
May 29, 2025 The Cost-Speed-Quality Triangle
While everyone wants to lower costs, there are limits to what affects price. Here at Adept, we do everything we can to ensure your products are reasonably priced, there's a limit to how low price can go without sacrificing speed and quality. If you want speed AND high quality, you sacrifice price. If you want low price and quick turnaround, the quality will suffer. If quality and price are your priority, speed slows way down. Lindsey Dimon, a sales account manager at Falcon Plastics, created the image you see here, showing how the parts intertwine.
What we have to discuss at the beginning of every project is tolerances and timing. How wide your tolerances are will impact both price and speed, Very tight tolerances require slower processing and will drive price higher.
We are always looing for ways to shorten lead times—whether it’s through automation, smarter tooling, or optimizing production across our facilities. Quality remains at the core of every decision, even when timelines are tight. And when cost becomes a pressure point, we have open conversations about options—what can be adjusted without compromising what matters most.
Most projects don't require everything,. Know that when you choose Adept, you're working with a company that is honest, thoughtful, and committed to doing the job right every time.

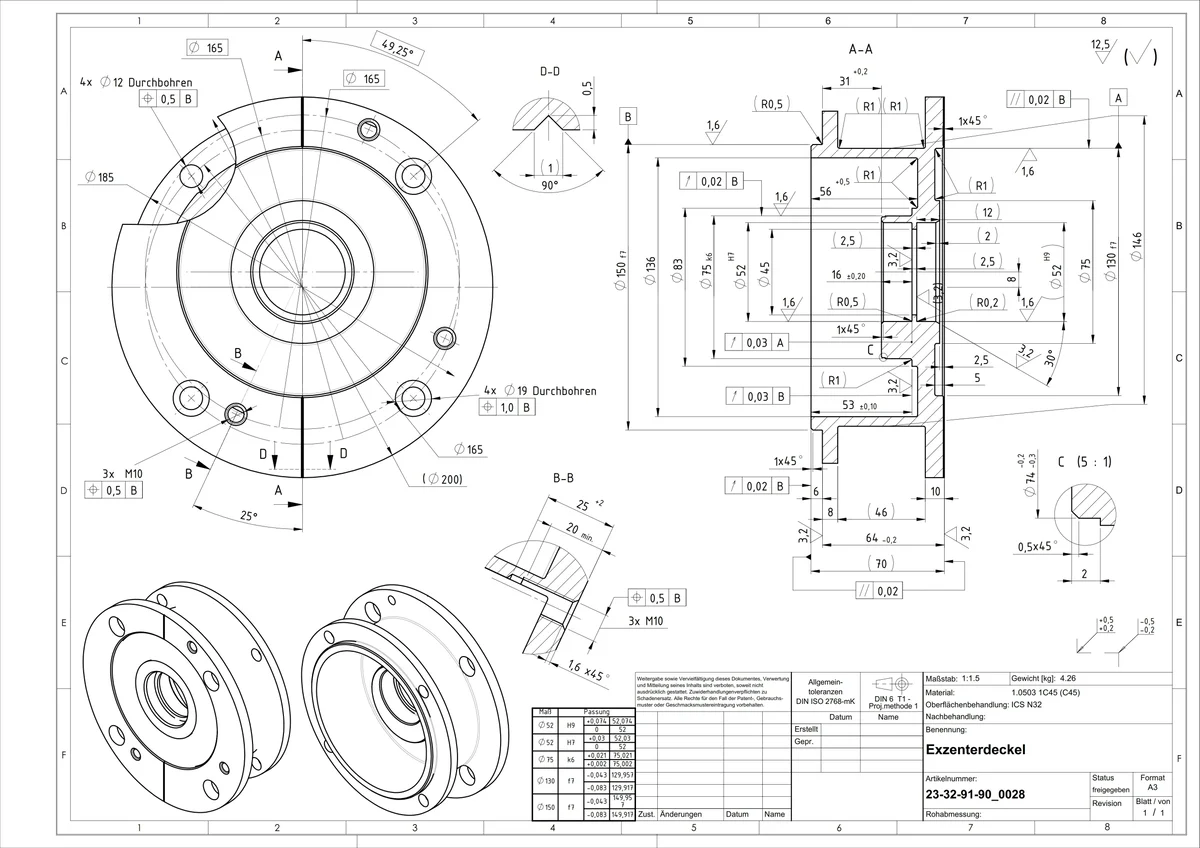

May 22, 2025 From Blueprint to Reality: The Machining Process
Every tangible product—from the simplest screw to complex aerospace components—starts as an idea, translated into a detailed blueprint. But how does this technical drawing transform into a physical object? The answer lies in machining, a precise manufacturing process that shapes raw materials into finished components. This article explores how a blueprint evolves into a real-world object through machining.

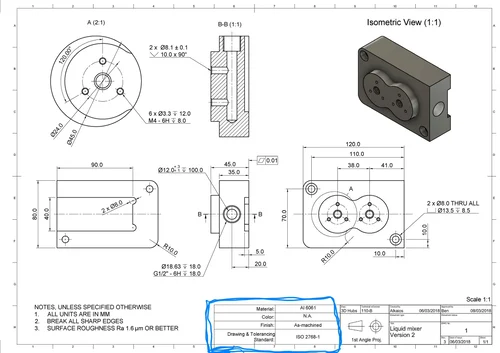

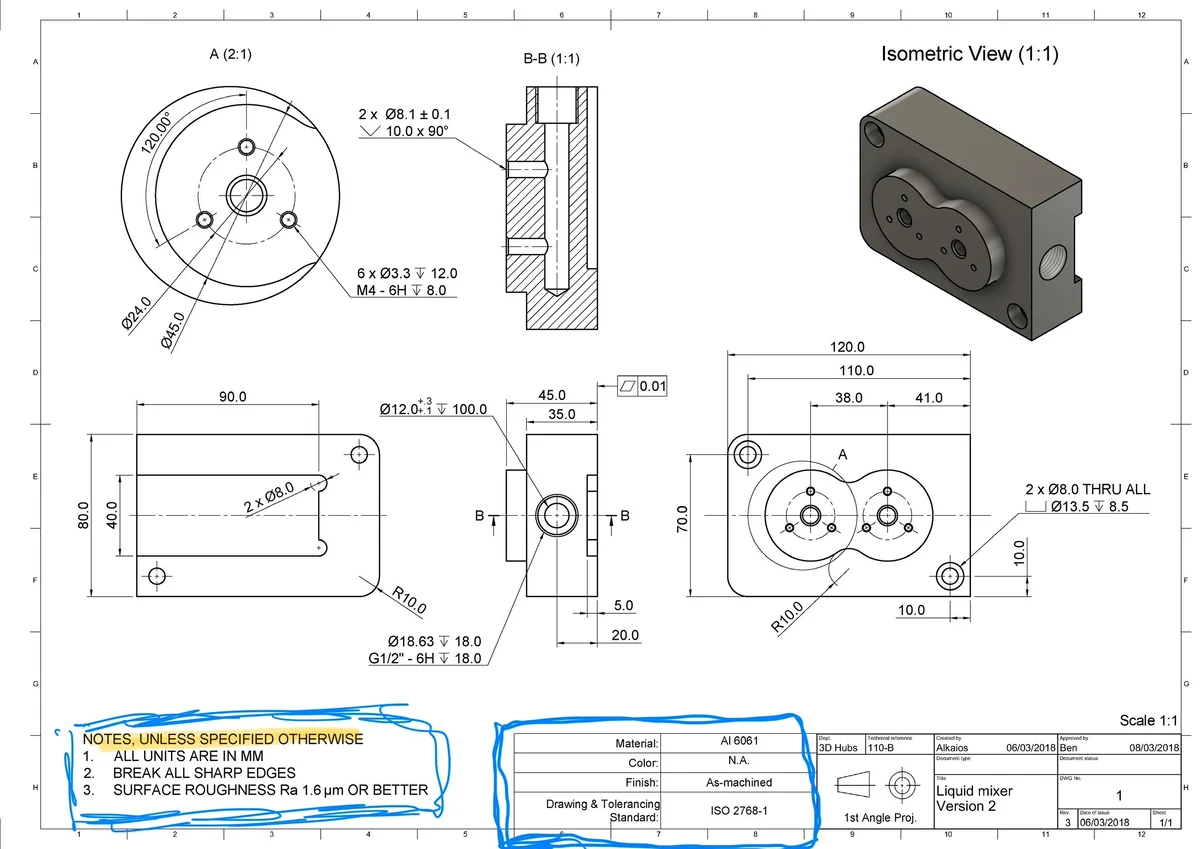

Blueprint Creation The journey begins with a blueprint, typically designed using Computer-Aided Design (CAD) software. This digital plan provides exact dimensions, tolerances, and material specifications needed to ensure accuracy. Engineers and designers collaborate to refine the blueprint, considering factors such as structural integrity, material properties, and intended function.
Material Selection Once the blueprint is finalized, selecting the right material is crucial. Common materials for machining include metals like aluminum, steel, and titanium, as well as plastics and composites. The choice depends on the object's function, strength requirements, and environmental factors such as heat or corrosion resistance.
Machining Setup Before the machining process begins, technicians prepare the workspace by: 1. Securing raw material stock onto a machine bed or fixture. 2. Loading the design file into Computer Numerical Control (CNC) machines. 3. Choosing the appropriate cutting tools based on the required precision and material properties.
Machining Processes Machining encompasses various techniques that gradually shape the raw material into the finished object: a) Cutting & Milling Milling machines use rotating cutting tools to remove excess material, shaping parts into the desired form. High-speed CNC machines precisely carve features according to the blueprint's specifications. b) Turning Lathes rotate the material while a cutting tool removes excess layers to create cylindrical objects like shafts and rods c) Drilling Drilling machines create holes for bolts, fasteners, or internal components. d) Grinding & Polishing Grinding smooths out rough surfaces and ensures tight tolerances, while polishing enhances the finish for aesthetic and functional purposes.
Quality Control & Inspection After machining, parts undergo thorough inspections to verify adherence to the blueprint. Engineers use tools like calipers, micrometers, and Coordinate Measuring Machines (CMMs) to check dimensional accuracy. Any deviations are corrected through additional machining or refinements.
Final Assembly & Application Once the machined part meets specifications, it is cleaned, treated, and assembled with other components (if applicable). The final product is ready for use in industries such as aerospace, automotive, medical devices, and consumer goods.
Machining bridges the gap between concept and reality, transforming blueprints into precision-engineered objects through cutting, shaping, and refining materials. Whether crafting intricate mechanical components or everyday tools, machining remains an indispensable process in modern manufacturing. At Adept, we pride ourselves in our attention to detail in every single step of the process, ensuring your products are exactly as you need them.
How Aluminum is Mined: From Bauxite to Metal Aluminum is the most abundant metal in the Earth’s crust,but it’s never found in its pure form in nature. Instead, it exists primarilyas part of a mineral called bauxite, which contains aluminum-bearing minerals such as gibbsite, boehmite, and diaspore. The process of mining aluminum begins with the extraction of bauxite and ends with the production of pure aluminum metal through refining and smelting. Here’s a step-by-step look at how aluminum is mined and produced.
1. Locating Bauxite Deposits Aluminum production starts with finding bauxite deposits. Bauxite is typically found near the surface, mainly in tropical and subtropical regions such as Australia, Guinea, Brazil, and parts of Africa and Southeast Asia. These areas offer the right climatic and geological conditions for bauxite formation, particularly areas with high rainfall and good drainage.
2. Bauxite Mining Since bauxite deposits are usually close to the surface, open-pit mining is the most common method.
3. Bauxite Processing (Refining)Once mined, bauxite undergoes refining to extract aluminumoxide (alumina) using the Bayer Process. This involves several steps: Crushing and grinding: The bauxite is crushed into smaller particles and mixed with a hot solution of sodium hydroxide (caustic soda). Digestion: Under high pressure and temperature, the sodium hydroxide dissolves the aluminum-containing compounds, leaving behind impurities (called red mud). Clarification: The mixture is settled and filtered to separate the red mud from the liquid. Precipitation: The aluminum hydroxide is precipitated out of the solution by cooling and seeding with aluminum hydroxide crystals. Calcination: The aluminum hydroxide is heated in rotary kilns or fluidized bed calciners to remove water, leaving behind pure alumina (Al₂O₃).
4. Smelting Aluminum (Electrolysis) The final step is converting alumina into metallic aluminum using the Hall–Héroult process, which involves electrolysis: The alumina is dissolved in molten cryolite (a rare mineral that reduces the melting point). A powerful electric current is passed through the solution, causing aluminum ions to migrate to the cathode (negative electrode), where they are reduced to molten aluminum metal. Oxygen is released at the anode (positive electrode), often reacting with the carbon electrodes to form carbon dioxide.
5. Casting and Further Processing The molten aluminum is then cast into various shapes such as ingots, billets, or slabs for use in manufacturing. From here, it can be rolled into sheets, extruded into profiles, or alloyed with other metals to meet specific needs in industries such as automotive, aerospace, packaging, and construction.
Sustainability Considerations Aluminum is highly recyclable, and recycling aluminum uses only about 5% of the energy required to produce it from bauxite. This makes it one of the most sustainable metals when a strong recycling infrastructure is in place. At Adept Manufacturing, we source only the best aluminum for your projects, as we believe that quality is crucial to building strong relationships with our customers.
May 6, 2025 – Across industries, businesses use ISO9001 certification to bolster quality, efficiency, and customer trust.
As companies look for ways to differentiate themselves and navigate a rapidly changing economy, ISO 9001 continues to offer a clear roadmap for operational excellence. In an increasingly competitive global market, ISO 9001 has emerged as the gold standard for quality management systems. Developed by the International Organization for Standardization (ISO),ISO 9001 provides a framework that helps organizations ensure consistent quality in their products and services while also improving internal processes. Adopted in over 170 countries, ISO 9001 is used by companies of all sizes, from small manufacturers to multinational corporations. The certification signals a company's commitment to continuous improvement, customer satisfaction, and meeting regulatory requirements.“ISO9001 helps companies create a culture of quality,” says Matthew Shea, president of Adept Manufacturing & Gauging. “It’s not just about passing an audit. It’s about embedding best practices into the daily workflow.”
The current version of the standard, ISO 9001:2015, emphasizes risk-based thinking, leadership involvement, and process efficiency. Companies seeking certification must document and standardize their processes, establish clear quality objectives, and demonstrate continual improvement. For businesses, the benefits go beyond compliance. ISO 9001certification can open new markets, reduce waste, lower operational costs, and strengthen customer relationships. In some industries, like aerospace, automotive, and medical devices, ISO 9001 certification is increasingly becoming a requirement rather than a choice. Government agencies and large buyers often mandate working with certified suppliers to reduce risk and ensure standards are met.
The path to certification requires time, resources, and cultural buy-in, but at Adept Manufacturing & Gauging we believe the return on investment is substantial. By continuously certifying our ISO9001 status, we ensure our customers get the best quality products available. Our current certification is ISO9001:2015, and we will be upgrading to ISO9001:2025 when available. This is one of the many ways we promise the customer the right products at the right time and at the right price.
